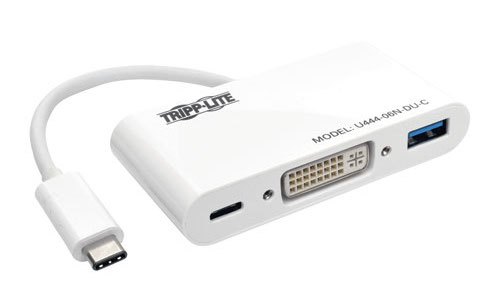

USB-C to DVI-D adaptor with USB-A and USB-C Charging Port (USB 3.1 Gen 1 )

Adds a DVI, USB-A and USB-C charging port to the USB-C port on your computer, laptop, tablet or other compatible device. Ideal for multitasking, presenting at trade shows and conferences, and editing documents.
  • Supports USB DisplayPort Alternate Mode for transmitting video
  • Supports DVI single-link video resolutions up to 1080p (@ 60 Hz)
  • Supports DVI digital transfer rates up to 6.75 Gbps
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • Plug-and-play—no software or drivers required

Overview

The U444-06N-DU-C USB 3.1 Gen 1 to DVI DisplayPort Alternate Mode External Video Adapter supports USB DisplayPort Alternate Mode for displaying video on a DVI monitor or projector via your computer, laptop or tablet’s USB-C port. It’s an ideal tool for multitasking, editing documents, or giving presentations at trade shows and conferences.

No software, drivers or external power supply is needed. Connect the adapter’s USB-C male plug to the USB-C port on your device. Then, connect the adapter’s DVI female port to a monitor using a DVI cable (such as Tripp Lite’s P561-Series) to see full DVI video.

The U444-06N-DU-C includes a USB 3.1 hub port for connecting USB-A peripherals, such as a thumb drive or printer. It’s backward compatible with previous USB generations. The USB-C charging port supports power input up to 20V 3A (60W). The U444-06N-DU-C charges the device that it’s plugged into, as well as a peripheral plugged into its USB-A port, by connecting the USB-C charging port to a USB-C wall charger.

The U444-06N-DU-C supports DVI single-link video resolutions up to 1920 x 1080 (1080p) at 60 Hz, USB 3.1 Gen 1 data transfer rates up to 5 Gbps, and DVI digital transfer rates up to 6.75 Gbps (2.25 Gbps per channel).

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum


Features

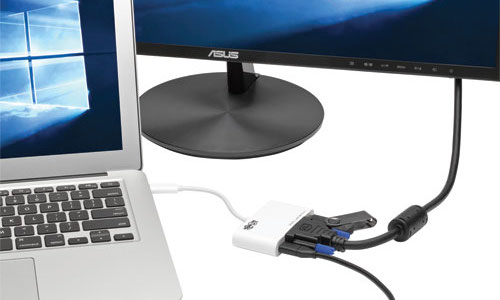

Easy to Add a DVI Display
  • Supports USB DisplayPort Alternate Mode for transmitting video to a DVI display via your computer, tablet, laptop or smartphone’s USB-C port
  • Ideal for multitasking, viewing spreadsheet data, editing documents, giving presentations, watching movies and playing video games
  • Plug-and-play—no software, external power supply or drivers required

USB-A Hub Port

  • Connect USB peripherals, such as a thumb drive or printer, to your device
  • Backward compatible with previous USB generations

USB-C Port for Charging Portable Devices

  • Supports power input up to 20V 3A (60W)
  • Connects to USB-C wall charger to power connected devices

Vibrant, Superior Video Quality

  • Supports DVI single-link video resolutions up to 1920 x 1080 (1080p) @ 60 Hz
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • Supports DVI digital transfer rates of 6.75 Gbps (2.25 Gbps per channel)

System Requirements

  • USB-C device that supports USB DisplayPort Alternate Mode
  • DVI-enabled monitor

Package Includes

  • U444-06N-DU-C USB 3.1 Gen 1 to DVI DisplayPort Alternate Mode External Video Adapter
  • Owner’s manual

Specifications

CONNECTIONS

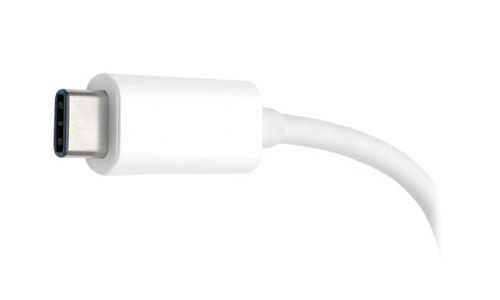

Side A - Connector 1 USB C (MALE)

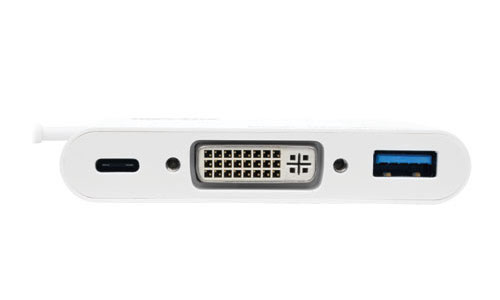

Side B - Connector 1 DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
Side B - Connector 2 USB 3.0 A (FEMALE)
Side B - Connector 3 USB C (FEMALE)



SKU: TL-U444-06N-DU-C
