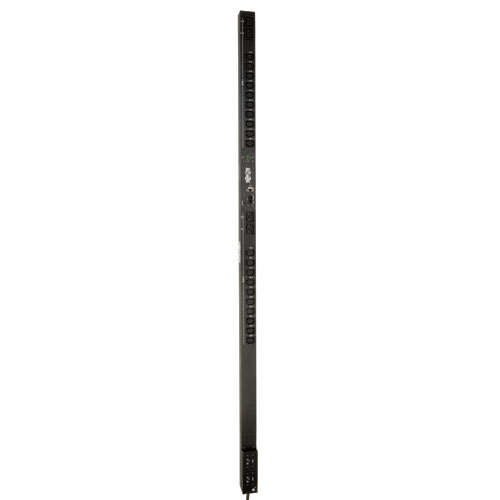

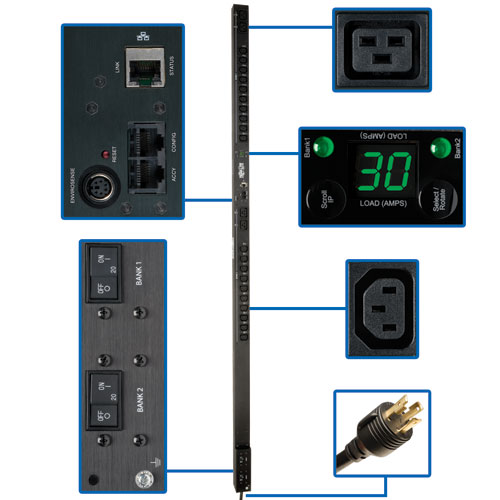

PDUMV30HVNET 5/5.8kW Single-Phase Switched PDU, 208/240V Outlets (20-C13 and 4-C19), L6-30P, 10ft Cord, 0U Vertical

  • Switched 30A 208/240V PDU; 70in / 178cm 0u Vertical Rackmount
  • Reports voltage, frequency & loading information via ethernet interface
  • Visual current meter; Toolless button mount installation
  • 10ft / 3m cord with L6-30P input plug
  • 24 switched outlets (20 C13, 4 C19); cord retention brackets
  • Temperature, humidity and contact-closure monitoring options
  • TAA Compliant

Tripp Lite Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.

Key Features

  • 208/240V Switched PDU with built-in web/network interface in 0U 70 inch / 178cm vertical rackmount form factor; 30A maximum capacity (agency de-rated to 24 amps)
  • 10 ft. / 3m cord with L6-30P input plug
  • 24 switched outlets (20 C13; 4 C19)
  • Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
  • Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
  • Network interface provides PDU control and data regarding input voltage, frequency and loading information

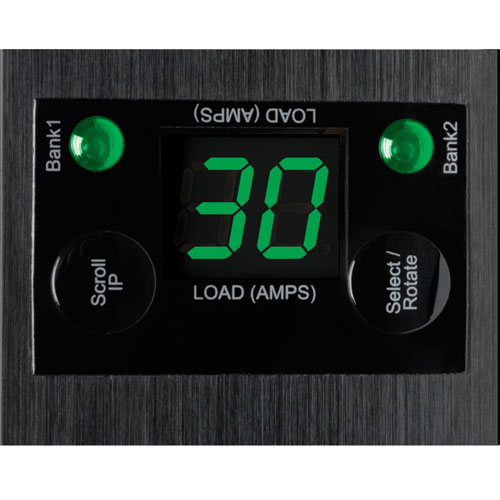

  • Digital display reports output load in amps in 3 segments (load bank 1, load bank 2, total)
  • Display also supports IP-address self-identification and 180 degree display rotation
  • Supports user-specified alarm notification thresholds
  • In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
  • DHCP/Manual configuration support
  • 10/100 Mbps auto-sensing
  • Real-time clock backup maintains the time of day and date even if the PDU is not powered on
  • Tiered access privileges allow an administrator and a guest to login via web browser
  • Alert notifications via email or SNMP traps offer immediate event notification
  • Firmware upgrade ability supports future product enhancements
  • Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
  • Fully compatible with FREE PowerAlert Network Management System / NMS Software
  • Included cord retention brackets

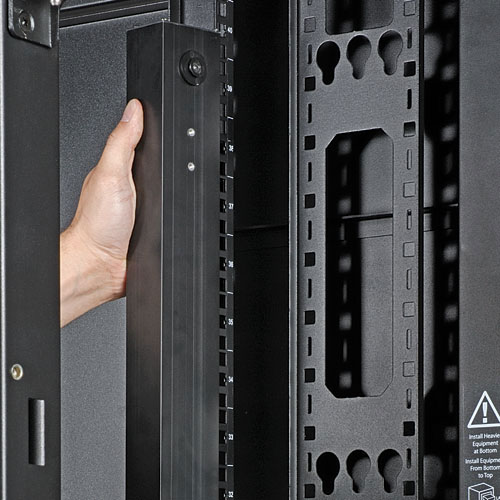

  • Toolless mounting supported in button-mount compatible racks
  • Included PDUMVROTATEBRKT enables space saving toolless installation in button-mount compatible racks with PDU outlets facing the rear
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Typical Applications



  • Ideal for network configurations requiring a switched, metered and monitored PDU supporting individual outlet rebooting, load shedding and remote web/network current monitoring of critical networking components

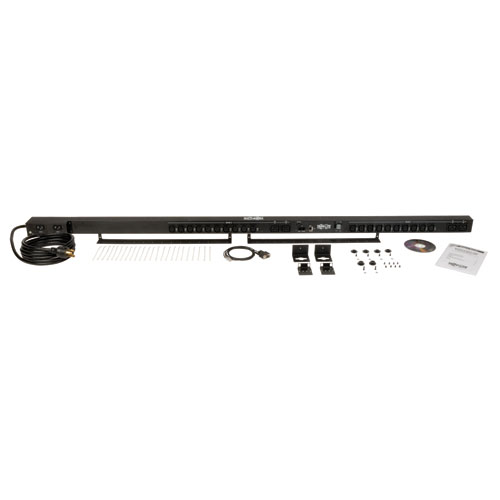

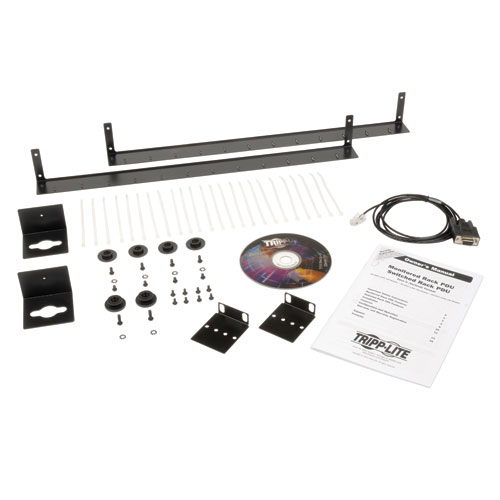

Package Includes

  • Rackmount PDU
  • Rack mounting brackets
  • Owner's manual
  • PDUMVROTATEBRKT mounting accessory

OVERVIEW

PDU Type Switched

OUTPUT

Output Capacity Details 5kW (208V input), 5.8kW (240V input), 4.8kW (200V input); 30A maximum (agency de-rated to 24A continuous)
Frequency Compatibility 50 / 60 Hz
Output Receptacles (20) C13; (4) C19
Output Nominal Voltage 200-240V nominal, single phase
Overload Protection Outlets are arranged in two banks of 12 (10 C13 and 2 C19 each). Each bank is protected by a separate 15A thermal circuit breaker
Outlet Type IEC-C13, IEC-C19
Customized Load Management Receptacles Each outlet is individually controllable via remote interface
Individual Outlet Switching Yes

INPUT

PDU Input Voltage 200; 208; 240
Maximum Input Amps 30
Maximum Input Amps Details Agency de-rated to 24A continuous

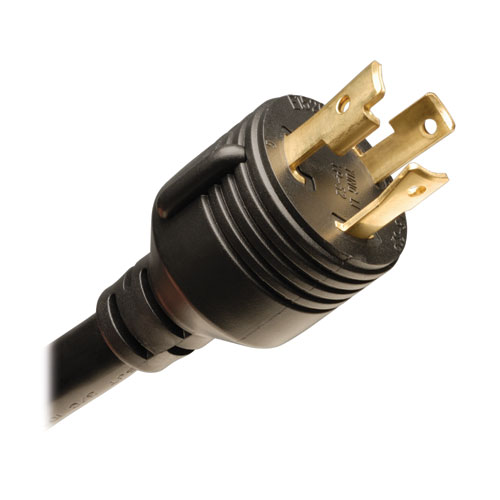

PDU Plug Type NEMA L6-30P
Input Cord Length (ft.) 10
Input Cord Length (m) 3
Input Phase Single-Phase

USER INTERFACE, ALERTS & CONTROLS

Front Panel LEDs 24 power availability LEDs confirm power off/on status for each built-in outlet
Switches Pushbutton scroll button enables local power consumption display of each load bank, display rotate and display IP address functions

PHYSICAL

Shipping Dimensions (hwd / in.) 4 x 6 x 72.5
Shipping Dimensions (hwd / cm) 10.2 x 15.2 x 184.1
Shipping Weight (lbs.) 16.5
Shipping Weight (kg) 7.5
Unit Dimensions (hwd / in.) 70 x 2.19 x 2.65
Unit Dimensions (hwd / cm) 177.8 x 5.6 x 6.7
Unit Weight (lbs.) 11.5
Unit Weight (kg) 5.2
Form Factors Supported 0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor Vertical (0U)

ENVIRONMENTAL

Relative Humidity 0-95% non-condensing

COMMUNICATIONS

SNMP Compatibility Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually
