NetCommander USB Server Interface Unit (SIU) - 8-Pack

  • Needed to connect a USB Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
  • Easy to install; no software needed
  • No power supply required
  • Allows a recommended maximum distance of 100ft from KVM to computer/server via Cat5e cable
  • Compact and lightweight design

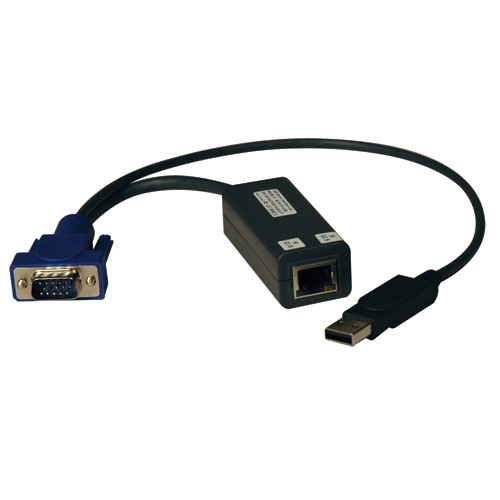

The Tripp Lite NetCommander USB Server Interface Unit (SIU) connects to the HD15 port and USB port on a computer/server, and converts them to a single RJ45 connector. Ordinary Cat5e patch cables can then be used to connect the server to the switch ports on a Tripp Lite B070 / B072-Series NetCommander Cat5 KVM switch. Use of Cat5e cables frees up space in the installation that would ordinarily be filled by traditional, thicker KVM cables.

Key Features

  • Needed to connect a USB Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
  • Eliminates the need for thicker, heavier KVM cables
  • Compact, lightweight design
  • Plug and Play; no software required
  • No power supply required
  • Allows a Server/CPU to be located up to 100ft away from the KVM switch

System Requirements

  • Server or CPU with a HD15 port and a USB port
  • A B070 / B072-Series NetCommander Cat5 KVM Switch
  • Cat5e/6 cable; up to 100ft

Package Includes

  • (x8) B078-101-USB-1 USB Server Interface Unit (SIU)

OVERVIEW

Model Type Interface Modules
Accessories Type Server Interface Unit

CONNECTIONS

Connector A RJ45 (FEMALE)
Connector B HD15 (MALE) & USB-A (MALE)
Connector C USB A (MALE)
SKU: TL-B078-101-USB-8
