HDMI over Cat5/Cat6 Active Extender, Box-Style Remote Receiver for Video and Audio

  • For use with the B126-002 and B126-004 transmitter units
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Can further expand the range and number of monitors by adding repeaters
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.


  • A 1080p (60Hz) signal can be transmitted up to 150 ft.
  • A 1080i (60Hz) signal can be transmitted up to 200 ft.
  • A 3D signal can be transmitted up to 125 ft.

Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit:


  • Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.

Key Features

  • For use with B126-002 and B126-004 transmitter units.
  • Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p (60Hz)
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, is required to achieve maximum distance and resolution.
  • Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor.
  • HDCP and 3D compatible.
  • Compatible with both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).
  • Supports 24-bit True Color (8-bits per channel).
  • Can further expand the range and number of monitors by adding B126-110 repeaters.
  • Connect up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..

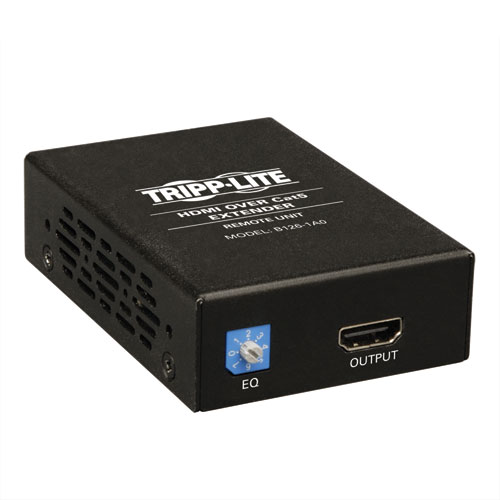

  • Features a built-in Equalization control for adjustment of the video image.
  • Compatible with all operating systems.
  • Plug and play; No drivers required.
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

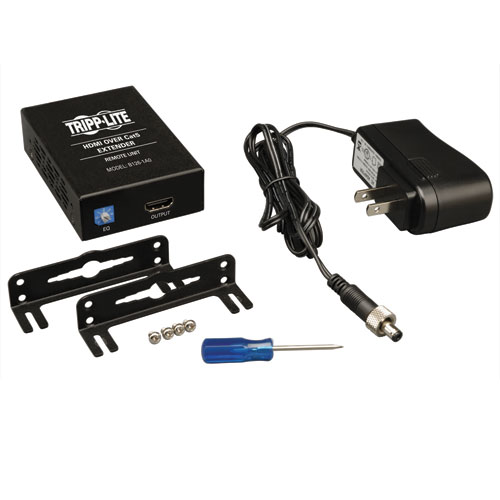

Package Includes

  • B126-1A0 HDMI Over Cat5 Active Extender Remote Unit
  • Screwdriver for adjustment of Equalization
  • Mounting hardware
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's manual

OVERVIEW

Chromebook Compatible Yes
Display Style Splitter
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL

Unit Dimensions (hwd / in.) 1 x 2.5 x 3.6
Unit Dimensions (hwd / cm) 2.54 x 6.35 x 9.14
Included Mounting Accessories Yes
Color Black

ENVIRONMENTAL

Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

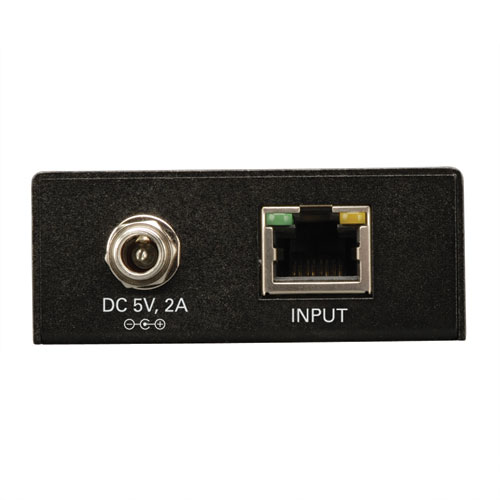

CONNECTIONS

Connector A HDMI (FEMALE)
Connector B RJ45 (FEMALE)



SKU: TL-B126-1A0
