HDMI over Cat5/6 Active 1x2 Extender Kit, Transmitter & Receiver

Single HDMI input to two remote HDMI outputs via Cat5/6 cable

  • Transmitter and Receiver Kit
  • Receiver splits to 2 x HDMI ports for two TV connections
  • 1080p up to 150ft, 1080i up to 200ft
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

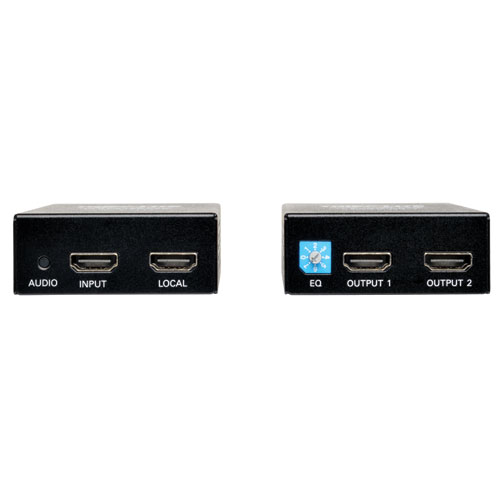

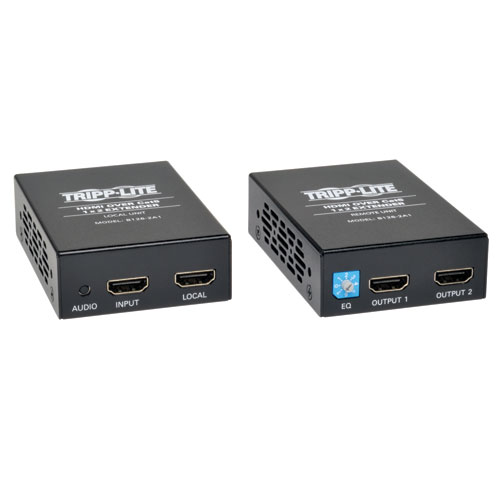

The B126-2A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable, where the Receiver then splits out to two HDMI ports, allowing two screens to show the source image. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation Description

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to two displays using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable:

  • A 1080p (60Hz) signal can be transmitted up to 150 ft.
  • A 1080i (60Hz) signal can be transmitted up to 200 ft.
  • A 3D signal can be transmitted up to 125 ft.

Further extend the signal range or add more displays by using a Tripp Lite Remote Repeater unit:

  • Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft..
  • A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft..
  • A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft..

Key Features

  • Connect two TVs to a single HDMI video source over a single Cat5e/6 cable
  • Extends an HDMI signal to 2 monitors up to 200 ft. from the source over a single Cat5e/6 cable
  • Extends a 1080p (60Hz) signal up to 150 ft. from the source using Cat6 cabling, or up to 125 ft. using Cat5e cabling
  • Extends a 1080i (60Hz) signal up to 200 ft. from the source using Cat6 cabling, or up to 175 ft. using Cat5e cabling
  • Use 24 AWG, solid wire Cat5e/6 cable, such as Tripp Lite’s N202-Series, to achieve maximum distance and resolution
  • Further expand the range and number of monitors by adding B126-110 repeater units
  • Add up to three repeaters on each Cat5e/6 channel, for a total of 4 displays per channel (An Active Remote Receiver should be the last unit in a channel)
  • A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater added into a channel (or up to 175 ft, for a 1080i (60Hz) signal when using either Cat5e or Cat6 cabling)
  • Supports 24-bit True Color (8-bits per channel)
  • Built-in equalization control to adjust the video image
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

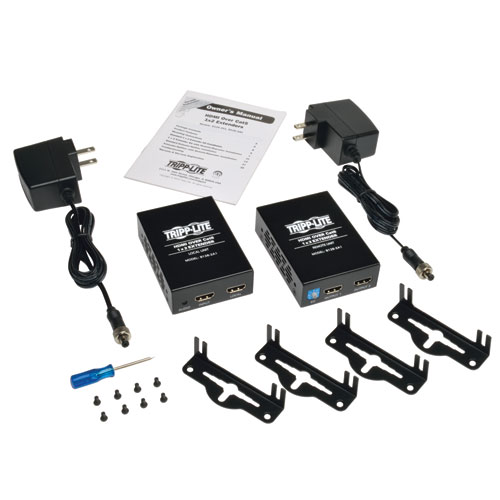

Package Includes

  • B126-2A1 Kit ( Transmitter and Receiver )
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Mounting Hardware
  • Screwdriver for Equalization Adjustment
  • Owner’s Manual

OVERVIEW

Chromebook Compatible Yes
Display Style Extender
Model Type HDMI
Cable Types CAT5/CAT5E

PHYSICAL

Included Mounting Accessories Yes
Color Black

ENVIRONMENTAL

Operating Temperature Range 0 to 40 C (32 to 104 F)
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 20 to 90%

CONNECTIONS

Connector A HARDWIRE
Connector B HARDWIRE



SKU: TL-B126-2A1
